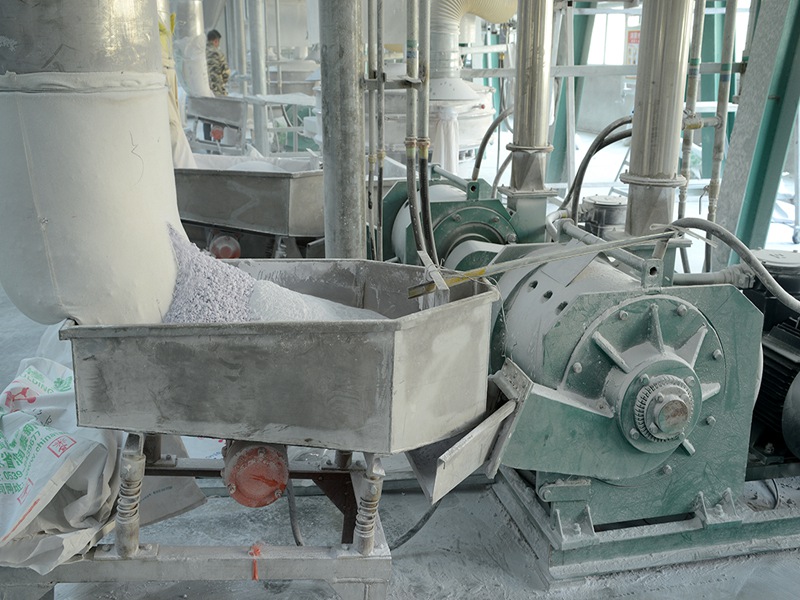

Pulverizer machie is mainly used for pre-crushing before entering the ball mill
Order(MOQ):
1Payment:
LC, TTProduct Origin:
ChinaColor:
CustomizationShipping Port:
Shanghai PortIntroduction
The pulverizer utilizes ultrasonic eddy current technology to transform resin, food, and pharmaceutical products into finely ground powders. This process results in a slight temperature rise in the materials being processed. Furthermore, it can be effectively used for sticky and elastic products as well.
Specifications
Model No |
Capacity |
Material |
(KW) Power |
Feeding |
Transfer |
FS400A |
500-800KG |
CS/304 |
30 |
spiral/vibrating |
belt |
FS400B |
500-800KG |
CS/304 |
30 |
spiral |
belt |
Product Features
The pulverizer serves primarily as a preliminary crushing device prior to the ball mill, working in tandem with the latter.
1. Enhanced material performance is achieved through the incorporation of a cooling water jacket.
2. The blades possess an elevated surface hardness as a result of high-frequency quenching.
3. Customizable blades cater to varying moisture levels in different materials, as per user specifications.
4. Features an integrated separator and dust collector system, facilitating automated transport to the ball mill.
