The Operating Principle of Turbo Mills: Unveiling Efficiency and Precision
January 25, 2024
Turbo mills have emerged as crucial equipment in various industries, including pharmaceuticals, chemicals, and food processing. In this article, Johnley Factory will delve into the working principle of turbo mills, exploring their intricate mechanisms and highlighting their benefits in achieving finely ground particles.
1. Overview of Turbo Mills

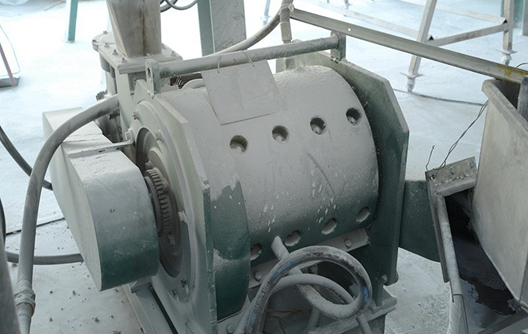

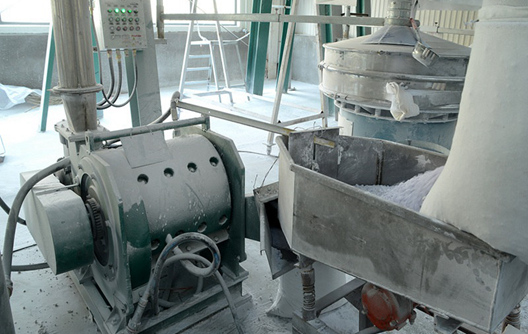

Turbo mills, also known as turbo crusher, are high-speed grinding machines designed to break down solid materials into smaller particles. These mills utilize principles of centrifugal force, impact, and shearing to achieve the desired particle size reduction. T
2. Rotor and Stator Configuration
At the heart of a turbo mill lies the rotor and stator assembly. The rotor, equipped with multiple blades or pins, revolves at high speeds, generating a powerful vortex and generating centrifugal forces. The stator, comprising an array of stationary pins or grooves, creates a strong shear zone where the particles are subjected to intense grinding forces.
3. Particle Entrapment and Acceleration
When the material enters the turbo mill through a feed inlet, it immediately encounters the rapidly rotating blades of the rotor. The blades entrain the particles into the high-speed vortex, where they experience both centrifugal and impact forces. This entrainment and acceleration mechanism ensures that the particles are efficiently and uniformly distributed within the grinding chamber.
4. Grinding and Classifying Zone
As the particles circulate within the grinding chamber, they repeatedly collide with the blades, stator pins, and each other. These collisions result in a combination of impact and shear forces, leading to fragmentation and size reduction. The stator pins play a crucial role in intensifying the shear forces by ensuring a narrow gap between the rotor and the stator, creating a controlled turbulence that enhances the grinding efficiency.
5. Particle Size Control
One of the key advantages of turbo mills is their ability to achieve precise particle size control. The particle size is primarily regulated by the rotational speed of the rotor, the stator design, and the gap between the rotor and stator. By adjusting these parameters, operators can produce a wide range of particle sizes tailored to specific application requirements.
6. Air Classification
In certain applications, turbo mills incorporate an air classification system to further refine the particle size distribution. The classification occurs within the grinding chamber, where a stream of air, introduced through specially designed nozzles, carries the fine particles upward and separates them from the coarser material and finally ensures a high level of uniformity and consistency in the final product.
Turbo mills' precise control over particle size, combined with their high throughput capabilities, make turbo mills an indispensable tool for achieving optimal product quality and performance.
